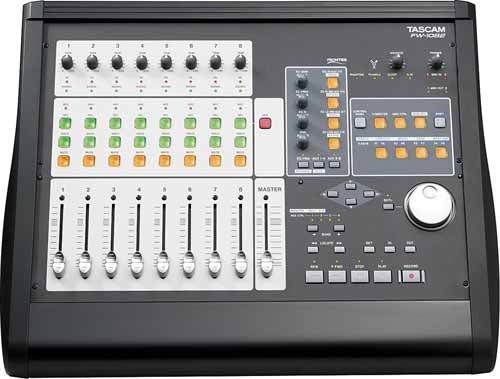

Tascam FW-1082
FireWire Audio / Midi interface, with control surface features



larger size



630,00 Euro





Four microphone inputs, each with phantom power for condenser mics, record to multiple tracks for later overdubbing or mixdown. The first two inputs have analogue insert points, so you can insert a compressor to keep from distorting or add any external effect to your recording tracks. Up to eight line level signals can be recorded or mixed simultaneously such as synthesizers or multieffects processors. An SPDIF connection allows you to connect digital sources.
The FW-1082 includes a full-featured MIDI interface with two MIDI inputs and two MIDI outputs, so you can connect several synths and controllers. The control surface of the FW-1082 features nine touch-sensitive moving faders that snap to position when you select a bank of eight faders. A full selection of transport buttons, cursor keys and a shuttle wheel allow you to quickly jump to any point of your song without touching a mouse.
The four assignable encoders provide exact control over pan, EQ or aux sends of your workstation software mix. Separate headphone and monitor outputs and controls are also provided. It's compatible with all of the top DAW recording applications, including the bundled Cubase LE 48-track workstation. With its audio, MIDI and control surface features, the FW-1082 is a command center for your home studio.

*Control Surface compatibility for some features is subject to the DAW program's native driver software.*

Main Features

Audio interface with 10 inputs and 4 outputs
Enough ins and outs to record a band or mix a MIDI synth arrangement
24-bit/96-kHz audio resolution
Four balanced XLR/TRS mic/line inputs with phantom power
Connect line sources, dynamic or studio condenser microphones
Four additional balanced TRS line inputs (one switchable to Guitar)
Eight total inputs for line sources, guitar/bass (ch. 8 switchable) or effect returns
Analogue inserts on channels 1 and 2
Insert a compressor, limiter, noise gate, EQ or effect while recording
SPDIF stereo digital input and output
Transfer digital audio to CD recorders, samplers or effects processors
Balanced TRS monitor outputs
Connect to your monitor system even over long distances
Headphone output with level control
Listen to your recording without additional monitor amplifier/speakers
Two MIDI inputs and outputs
Use up to 32 channels of multi-timbral MIDI
Assignable footswitch jack
Can be used for hands-free recording
Nine 60-mm touch-sensitive moving faders
Automate mix moves like a pro and see where level is set on any channel including the master
Eight channel strips with solo, mute and select buttons and record arm indicator
Quickly access your channels without using the mouse
Four assignable encoders
Use real controls to adjust pan, aux level and EQ parameters
Transport controls, jog/shuttle wheel and many other surface controls
Control your DAW application comfortably like a hardware recorder
Emulates Mackie HUIand MackieControl in addition to included native mode control plug ins
Works out of the box with any professional DAW software application
Includes GigaStudio 3 LE software sampling instrument
64-voice streaming sampler, compatible with GigaStudio libraries, VST plug-in support and ReWire
Includes Steinberg Cubase LE software
48-track recording at 96kHz plus MIDI tracks, VST plug-ins, ReWire support and digital mixing with an upgrade path to Cubase SX


Specifications

Analogue inputs and outputs
MIC input 1-4 (Balanced)
3-pin XLR jack x 4 (1: GND, 2: Hot, 3: Cold)
Input impedance
2.2k Ohm
Adjustable Input range
-56dBu (TRIM max) to -2 dBu (TRIM min)
Maximum gain
+54dB
Phantom power
Switchable +48V
LINE input 1-8 (Balanced)
6.3-mm TRS jack x 8
Input impedance
10k Ohm at LINE/MIC
500k Ohm at GUITAR (LINE Input: 8 switchable)
Adjustable input range
Channels 1-4: -42dBu (TRIM max) to +12dBu (TRIM min.)
Channels 5-8: -43dBu (TRIM max) to +4dBu (TRIM min.)
Maximum gain
+54dB (channels 1-4), +46dB (channels 5-8)
INSERT 1-2 (Unbalanced)
6.3-mm TRS jack with tip SW x 2
(T=SEND, R=RETURN, S=GND)
Impedance (Send)
100 Ohm
Nominal level (Send)
-2dBu
Maximum level (Send)
+14dBu
Impedance (Return)
10k Ohm
Nominal level (Return)
-2dBu
Maximum level (Return)
+14dBu
Analogue Monitor output
6.3-mm jack (balanced) x 2
Output impedance
100 Ohm
Nominal output level
+4dBu
Maximum output level
+20dBu
Phones output (Stereo)
6.3-mm stereo jack (T = L, R = R, S = GND) x 1
Max output power
52mW + 52mW (32 Ohm)

Digital inputs and outputs
Digital input (COAXIAL)
2-channel serial digital audio signal input terminal. In the case of Hi sampling, Hi-speed mode is supported.
Connector
RCA jack x 1
Input impedance
75 Ohm
Format
IEC60958 (SPDIF)
Audio bit length
24-bit
Digital output (Coaxial)
2-channel serial digital audio signal output terminal. In the case of Hi sampling, Hi-speed mode is supported.
Connector
RCA jack x 1
Output impedance
75 Ohm
Format
IEC60958 (SPDIF)
Audio bit length
24-bit

Other inputs and outputs
MIDI input 1-2
5-pin DIN connector x 2 – conforms to MIDI specifications
FireWire (IEEE.1394 digital interface)
IEEE.1394 connector x 2
Format
IEEE.1394
Transmit rate
400 Mbps
Foot switch for Punch In/Out of DAW application
Normally-open 6.3-mm TRS jack

Overall system and audio specifications
Sampling frequency
Internal clock
44.1kHz / 48.0kHz / 88.2kHz / 96.0kHz
External clock
Digital input
THD (at +4dBu)
<0.005% (20 Hz - 20 kHz, LINE IN to INSERT SEND)
<0.01% (1 kHz, LINE IN to MONITOR OUTPUT)
Frequency response (@ nominal level)
20Hz - 20kHz, ±1.0dB
(normal FS, MIC/LINE IN to INSERT SEND)
20Hz - 40kHz, +0.5dB / -1.0dB
(Hi FS, MIC/LINE IN to INSERT SEND)
20Hz - 20kHz, ±1.0dB
(normal FS, LINE IN to MONITOR OUTPUT)
20Hz - 40kHz, +0.5dB / -2.0dB
(Hi FS, LINE IN to MONITOR OUTPUT)
Noise level (20Hz - 20kHz, TRIM max, 150 Ohm)
<-128dBu (EIN), MIC IN to INSERT SEND
<-64dBu, LINE IN to MONITOR OUTPUT
Crosstalk (1kHz)
>80dB, MONITOR OUTPUT

Power supply and other specifications
External power adapter AC input
100V AC, 50/60Hz
120V AC, 60Hz
230V AC, 50Hz
240V AC, 50Hz
Adapter output voltage
12V, 2.5A
Power consumption
22W
Applicable electromagnetic environment
E4
Peak inrush current
2.6A
Dimensions (W x H x D)
486mm x 83mm x 386mm
Weight (excluding adapter)
6.5kg
Supplied accessories
AC adapter (PS-1225B) and AC cable
2m (6ft) IEEE.1394 6-6 cable
CD-ROM containing driver, utility software and documentation
CD-ROM containing Cubase LE
Owner's Manual
Setup Guide
Warranty card
