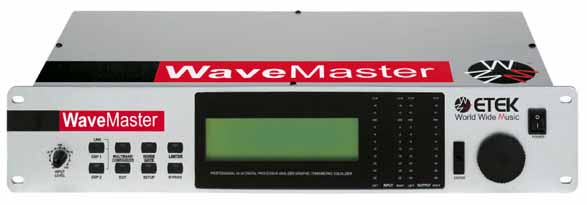

Etek WaveMaster
2-Channel 6-Band Processor

The WaveMaster makes use of a compression technique using the pre-analysis of the signal. For each of the 6 bands, the user can program Compression, Limiter, Gate, Expander, and Noise Gate Algorithms.
Each algorithm allows for programming of all functions with a large graphical display showing the function. The signal can be converted by means of A/D and D/A 24-bit convertors.
Digital A.G.C. automatic gain control.
WaveMaster is provided with an expansion port that can be hardware/software configured as S/PDIF or others, for direct interface between digital units. It will soon be possible to use the ADAT Interface, too.

Analog Inputs:
-Connectors: XLR and jack
-RF Filtered Type, Balanced/Unbalanced input
-Impedance: 60 kOhm balanced, 30 kOhm unbalanced
-Nominal Operating Level: -10 dBV /+4 dBV
-Max Input Level: +16 dBV

Analog Outputs:
-Connectors: XLR and jack
-RF Filtered Type, Balanced/Unbalanced output
-Impedance:60 Ohm balanced 30 Ohm balanced
-Max Output Level: +16 dBV

System Specifications:
-Bandwidth: 20 Hz - 22 kHz, ±0.3 dB
-Noise: >95 dB
-THD: 0.003% @ +4 dBu, 1 kHz
-Crosstalk: < -95 dB

Midi Interface:
-5-Pin DIN-Type Socket for MIDI IN/OUT/THRU
Serial RS-232 Interface for PCs and Extension Port:
-9-Pole Male Type Connector

Processing Board Expansion Interface:
-64-Pin Type Connector

Control Expansion Interface:
-64-Pin Type Connector

Digital Processing:
-DSP Processor: 2 x 24 bit (Audio data), 32 bit (Coefficients)
-Stereo Main Converter: 24 bit Sigma-Delta,64/128 times oversampling
-Sampling rate: 48 kHz, 44.1 kHz and 32 kHz.
-Digital Interface: AES/EBU - S/PDIFwith Automatic Sampling Rate Conversion.

-Digital A.G.C. automatic gain control

Power Supply:
-Mains voltage: 100-120 V AC, 200-240 V AC, 50-60 Hz
-Power Consumption: from 15 to 25 Watts(depending on the I/O config.)

-Dimensions (mm): 88 (h) x 483 (w) x 200 (d)
-Weight: 2.5 Kg
