1820M , 1820 , 1212M


to produce audio on a PC with 24-bit/192kHz converters, hardware-accelerated effects and mixing, sync options and compatibility with your favorite PC audio/sequencer software







E-MU DAS

E-MU Systems has teamed up with the Creative Advanced Technology Center to develop
the new line of Creative Professional hardware interfaces







Euro 500
1820M


The E-MU 1820M is the flagship of E-MU's line of Digital Audio Systems: 24-bit/192kHz converters (the same A/D converters used in Digidesign 's ProTools HD 192 I/O interface), hardware-accelerated effects and mixing, comprehensive sync options and compatibility with your favorite PC audio/sequencer software.

The E-MU 1820M features:
Mastering-grade 24-bit, 192kHz converters - the same A/D converters used in Digidesign 's flagship ProTools HD I/O Interface
Connectivity with 18 audio inputs and 20 outputs, 32 channels of MIDI I/O, Word Clock, SMPTE and MTC sync, plus a FireWire port for integration with your studio
Two premium TFPro mic preamps with Mic/Line/Hi-Z inputs with 40db of gain/attenuation and 48V phantom power for guitars, keyboards and microphones
E-DSP 32-bit Multi-effects Processor offers you over 16 simultaneous hardware-accelerated effects with no CPU overhead, plug-in architecture allows you to add new effects as needed
32 Channels of zero latency Hardware Mixing/ Monitoring with virtual patchbay : no external mixer needed
Full compatibility with most popular audio/sequencer applications with ultra-low latency WDM, DirectSound and ASIO 2.0 Drivers
Software studio package
I/O Configuration:
Two TFPro Mic/Line/Hi-Z preamps (w/48V phantom power)
Six 1/4" Balanced Inputs
Eight 1/4" Balanced Outputs
Turntable input (w/ground lug and hardware RIAA preamp)
24-bit/192kHz ADAT In/Out (switchable to S/PDIF)
24-bit/96kHz coaxial S/PDIF In/Out (switchable to AES/EBU)
24-bit/96kHz optical S/PDIF Out (switchable to AES/EBU)
Two sets of MIDI In/Out
Four stereo 1/8" Speaker Outputs (configurable from stereo to 7.1)
Stereo Headphone Output
Firewire Interface

Specifications

General
Sample Rates: 44.1, 48, 96, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)
Bit Depth: 16 or 24 bits
PCI Bus-Mastering DMA subsystem reduces CPU usage
Zero-latency direct hardware monitoring w/effects

Analog Line Inputs (6)
Type: servo-balanced, DC-coupled, low-noise input circuitry
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: +/- .05dB, 20Hz - 20kHz
THD+N (1kHz at -1dBFS): -110dB (.0003%)
SNR (A-weighted): 120dB
Dynamic Range (1kHz, A-weighted): 120dB
Stereo Crosstalk (1kHz at -1dBFS): < -115dB
Common-Mode Rejection (60Hz): > 40dB

Analog Line Outputs (8)
Type: balanced, low-noise, 3-pole low-pass differential filter
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: 0.0/-.35dB, 20Hz - 20kHz
THD+N (1kHz at -1dBFS): -105dB (.0006%)
SNR (A-weighted): 120dB
Dynamic Range (1kHz, A-weighted): 120dB
Stereo Crosstalk (1kHz at -1dBFS): < -115dB

Combo Microphone Preamplifier/Line Inputs (2)
Type: TFPro™ combination microphone preamp and line input
Frequency Response: +0.8/-0.1dB, 20Hz - 20kHz
Stereo Crosstalk (1kHz min gain, -1dBFS): < -120dB
Line Input:
- Gain Range: -12 to +28dB
- Max Level: +17dBV (19.2dBu)
- THD+N (1kHz at -1dBFS, min gain): -94dB (.002%)
- Dynamic Range (A-weighted, 1kHz min gain): 100dB
- SNR (A-weighted, min gain): 100dB
- Input Impedance: 10K ohm
- Common-mode Rejection Ratio (60Hz): > 40dB
Microphone Preamplifier
- Gain Range: +10 to +50dB
- Max Level: -12dBV (-9.8dBu)
- THD+N (1kHz at -1dBFS, min gain): -95dB (.0018%)
- SNR (A-weighted, min gain): 100dB
- Input Impedance: 330 ohms
- Common-mode Rejection Ratio (60Hz): > 80dB

Headphones (stereo)
Type: linear power amplifier
Frequency Response: +0.0/-0.35dB, 20Hz - 20kHz
THD+N (1kHz, max gain)
- 33 ohm load: -70dB (0.032%)
- 600 ohm load: -85dB (0.006%)
SNR (A-weighted): 112dB
Dynamic Range (A-weighted): 117dB
Stereo Crosstalk (1kHz at -1dBFS, 600 ohm load):< -100dB
Maximum Output Power: 500mW
Output impedance: 22 ohms
Gain Range: 85dB

Phono Input (stereo)
Type: RIAA equalized phono input
Frequency Response: +/-0.5dB, 50Hz - 20kHz
THD+N (1kHz, 10mV RMS unbal input): -76dB (.015%)
SNR (10mV RMS unbal input, A-weighted): 90dB
Stereo Crosstalk (1kHz at -1dBFS): < -80dB
Maximum level:
- Professional: 80mV RMS
- Consumer: 20mV RMS
Input capacitance: 220 pF
Input impedance: 47K ohm

Digital I/O
S/PDIF:
- 2 in/2 out coaxial (transformer coupled)
- 2 in/3 out optical (software switched with ADAT)
- AES/EBU or S/PDIF format, switchable under software control
ADAT:
- 8 channels, 24-bit @ 44.1/48kHz
- 4 channels, 24-bit @ 96kHz (S-MUX compatible)
- 2 channels, 24-bit @ 192kHz
Firewire:
- 400 Mbps 1394a port (6-pin)
- Compatible with DV cameras, storage peripherals, etc.
MIDI
- 2 in, 2 out

Synchronization
Internal crystal sync at 44.1, 48, 96, 192kHz
External sample rate sync
- ADAT
- S/PDIF (opt. or coax)
- Word clock (75 ohm termination, switchable)

Retail Box Contents
E-MU 1010 PCI card
E-MU AudioDock M
E-MU Sync daughter card
EDI (E-MU Digital Interface) cable (3 meters)
Sync cable
Mini-DIN MIDI adapter cable
Headphone splitter cable
PC power cable
Quick Start guide
Operation Manual on CD-ROM
Creative Professional Software CD-ROM
- Windows 2000 and XP Drivers
- E-MU PatchMix DSP
- E-MU E-DSP FX Library
Audio software package on CD-ROM


Minimum system requirements
Genuine Intel Pentium III or AMD K6 class processor or higher operating at 500MHz or faster
Intel , AMD or 100% compatible motherboard & chipset
128MB System RAM
500MB of free hard disk space for full installation
Windows® 2000 SP 4, Windows XP SP 1 or greater
PCI 2.1 compliant slot for E-MU 1010 PCI card
Adjacent PCI slot for Sync daughter card
CD-ROM or DVD-ROM drive required for software installation
XVGA Video (1024 X 768)








Euro 400

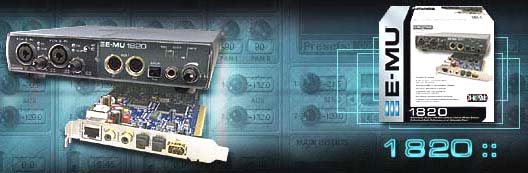

1820



The E-MU 1820 Digital Audio System delivers everything you need to produce audio on a PC with professional results- 24-bit/192kHz converters, hardware-accelerated effects and mixing, and seamless compatibility with your favorite PC audio/sequencer software. The 1820 offers musicians a comprehensive array of I/O options to cover every recording application at an unbeatable price.

The E-MU 1820 features:
24-bit, 192kHz converters and connectivity with 18 audio inputs, 20 outputs, 32 channels of MIDI I/O, plus a FireWire port for seamless integration with your studio
Two premium TFPro mic preamps with Mic/Line/Hi-Z inputs with 40db of gain/attenuation and 48V phantom power
E-DSP 32-bit Multi-effects Processor offers you over 16 simultaneous hardware-accelerated effects with no CPU overhead, plug-in architecture allows you to add new effects as needed
32 Channels of zero latency Hardware Mixing/ Monitoring with virtual patchbay - no external mixer needed
Full compatibility with most popular audio/sequencer applications with ultra-low latency WDM, DirectSound and ASIO 2.0 Drivers
Software studio package

I/O Configuration:
Two TFPro Mic/Line/Hi-Z preamps (w/48V phantom power)
Six 1/4" Balanced Inputs
Eight 1/4" Balanced Outputs
Turntable input (w/ground lug and hardware RIAA preamp)
24-bit/192kHz ADAT In/Out (switchable to S/PDIF)
24-bit/96kHz coaxial S/PDIF In/Out (switchable to AES/EBU)
24-bit/96kHz optical S/PDIF Out (switchable to AES/EBU)
Two sets of MIDI In/Out
Four stereo 1/8" Speaker Outputs (configurable from stereo to 7.1)
Stereo Headphone Output
Firewire Interface


Specifications
General
Sample Rates: 44.1, 48, 96, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)
Bit Depth: 16 or 24 bits
PCI Bus-Mastering DMA subsystem reduces CPU usage
Zero-latency direct hardware monitoring w/effects

Analog Line Inputs (6)
Type: servo-balanced, DC-coupled, low-noise input circuitry
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: +0.0/-0.2dB, 20Hz - 20kHz
THD+N (1kHz at -1dBFS): -102dB (.0008%)
SNR (A-weighted): 111dB
Dynamic Range (1kHz, A-weighted): 112dB
Stereo Crosstalk (1kHz at -1dBFS): < -115dB
Common-Mode Rejection (60Hz): > 40dB

Analog Line Outputs (8)
Type: balanced, low-noise, 3-pole low-pass differential filter
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: +0.0/-0.8dB, 20Hz - 20kHz
THD+N (1kHz signal at -1dBFS): -98dB (.0013%)
SNR (A-weighted): 112dB
Dynamic Range (1kHz, A-weighted): 112dB
Stereo Crosstalk (1kHz at -1dBFS): < -115dB

Combo Microphone Preamplifier/Line Inputs (2)
Type: TFPro™ combination microphone preamp and line input
Frequency Response: +0.8/-0.1dB, 20Hz - 20kHz
Stereo Crosstalk (1kHz min gain, -1dBFS): < -120dB
Line Input:
- Gain Range: -12 to +28dB
- Max Level: +17dBV (19.2dBu)
- THD+N (1kHz at -1dBFS, min gain): -94dB (.002%)
- Dynamic Range (A-weighted, 1kHz min gain): 100dB
- SNR (A-weighted, min gain): 100dB
- Input Impedance: 10K ohm
- Common-mode Rejection Ratio (60Hz): > 40dB
Microphone Preamplifier
- Gain Range: +10 to +50dB
- Max Level: -12dBV (-9.8dBu)
- THD+N (1kHz at -1dBFS, min gain): -95dB (.0018%)
- SNR (A-weighted, min gain): 100dB
- Input Impedance: 330 ohms
- Common-mode Rejection Ratio (60Hz): > 80dB

Headphones (stereo)
Type: linear power amplifier
Frequency Response: +0.0/-0.35dB, 20Hz - 20kHz
THD+N (1kHz, max gain)
- 33 ohm load: -70dB (0.032%)
- 600 ohm load: -85dB (0.006%)
SNR (A-weighted): 112dB
Dynamic Range (A-weighted): 112dB
Stereo Crosstalk (1kHz at -1dBFS, 600 ohm load):< -100dB
Maximum Output Power: 500mW
Output impedance: 22 ohms
Gain Range: 85dB

Phono Input (stereo)
Type: RIAA equalized phono input
Frequency Response: +/-0.5dB, 50Hz - 20kHz
THD+N (1kHz, 10mV RMS unbal input): -76dB (.015%)
SNR (10mV RMS unbal input, A-weighted): 90dB
Stereo Crosstalk (1kHz at -1dBFS): < -80dB
Maximum level:
- Professional: 80mV RMS
- Consumer: 20mV RMS
Input capacitance: 220 pF
Input impedance: 47K ohm

Digital I/O
S/PDIF:
- 2 in/2 out coaxial (transformer coupled)
- 2 in/3 out optical (software switched with ADAT)
- AES/EBU or S/PDIF format, switchable under software control
ADAT:
- 8 channels, 24-bit @ 44.1/48kHz
- 4 channels, 24-bit @ 96kHz (S-MUX compatible)
- 2 channels, 24-bit @ 192kHz
Firewire:
- 400 Mbps 1394a port (6-pin)
- Compatible with DV cameras, storage peripherals, etc.
MIDI
- 2 in, 2 out

Synchronization
Internal crystal sync at 44.1, 48, 96, 192kHz
External sample rate sync
- ADAT
- S/PDIF (opt. or coax)

Retail Box Contents
E-MU 1010 PCI card
E-MU AudioDock
EDI (E-MU Digital Interface) cable (3 meters)
Headphone splitter cable
PC power cable
Quick Start guide
Operation Manual on CD-ROM
Creative Professional Software CD-ROM
- Windows 2000 and XP Drivers
- E-MU PatchMix DSP
- E-MU E-DSP FX Library
Audio software package on CD-ROM



Minimum System Requirements:
Genuine Intel Pentium III or AMD K6 class processor or higher operating at 500MHz or faster
Intel , AMD or 100% compatible motherboard & chipset
128MB System RAM
500MB of free hard disk space for full installation
Windows 2000 SP 4, Windows XP SP 1 or greater
PCI 2.1 compliant slot for E-MU 1010 PCI card
CD-ROM or DVD-ROM drive required for software installation
XVGA Video (1024 X 768)








Euro 200

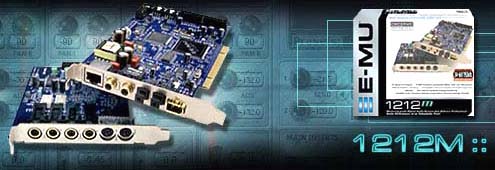

1212M



The E-MU 1212M features:
Mastering-grade 24-bit, 192kHz converters - the same A/D converters used in Digidesign® ''s flagship Pro Tools HD I/O Interface
Connectivity with 1/4" balanced analog I/O, 24/192 ADAT I/O and 24/96 S/PDIF I/O, MIDI I/O plus a FireWire® port for integration with your entire studio
E-DSP 32-bit Multi-effects Processor offers you over 16 simultaneous hardware-accelerated effects with no CPU overhead, plug-in architecture allows you to add new effects as needed
32 Channels of zero latency Hardware Mixing/ Monitoring with virtual patchbay ,no external mixer needed
Full compatibility with most popular audio/sequencer applications with ultra-low latency WDM, DirectSound and ASIO 2.0 Drivers
Software studio package

I/O Configuration:
Two 1/4" Balanced Inputs
24-bit/192kHz ADAT In/Out (switchable to S/PDIF)
24-bit/96kHz S/PDIF In/Out (switchable to AES/EBU)
MIDI In/Out
Firewire Interface

Specifications

General
Sample Rates: 44.1, 48, 96, 192kHz from internal crystal or externally supplied clock (no sample rate conversion)
Bit Depth: 16 or 24 bits
PCI Bus-Mastering DMA subsystem reduces CPU usage
Zero-latency direct hardware monitoring w/effects

Analog Line Inputs
Type: servo-balanced, DC-coupled, low-noise input circuitry
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: +/- .05dB, 20Hz - 22kHz
THD+N (1kHz signal at -1dBFS): -110dB
SNR (1kHz signal at -1dBFS): 120.7dB, A-weighted
Dynamic Range: 121dB, A-weighted
Channel Crosstalk: < -125dB, 1kHz signal at -1dBFS

Analog Line Outputs
Type: balanced, low-noise, 2-pole low-pass differential filter
Level (software selectable):
- Professional: +4dBu nominal, 20dBu maximum (balanced)
- Consumer: -10dBV nominal, 6dBV maximum (unbalanced)
Frequency Response: 0.0/-.35dB, 20Hz - 20kHz
THD+N (1kHz signal at -1dBFS): -105dB
SNR (1kHz signal at -1dBFS): 121.8dB, A-weighted
Dynamic Range: 123.6dB, A-weighted
Dynamic Range: 123.6dB, A-weighted

Digital I/O
S/PDIF:
- 2 in/2 out coaxial (transformer coupled)
- AES/EBU or S/PDIF format, switchable under software control
ADAT:
- 8 channels, 24-bit @ 44.1/48kHz
- 4 channels, 24-bit @ 96kHz (S-MUX compatible)
- 2 channels, 24-bit @ 192kHz
Firewire:
- 400 Mbps 1394a port (6-pin)
- Compatible with DV cameras, storage peripherals, etc.

Retail Box Contents
E-MU® 1010 PCI card
E-MU 0202 I/O daughter card
I/O card cable
Mini-DIN MIDI adapter cables
Quick Start guide
Operation Manual on CD-ROM
Creative Professional Software CD-ROM
- Windows 2000 and XP Drivers
- E-MU PatchMix DSP
- E-MU E-DSP FX Library
Audio software package on CD-ROM




Minimum System Requirements:
Genuine Intel Pentium III or AMD® K6 lass processor or higher operating at 500MHz or faster
Intel®, AMD or 100% compatible motherboard and chipset
128MB System RAM
500MB of free hard disk space for full installation
Windows® 2000 SP 4, Windows XP SP 1 or greater
PCI 2.1 compliant slot for E-MU® 1010 PCI card
Adjacent PCI slot for E-MU® 0202 I/O daughter card
CD-ROM or DVD-ROM drive required for software installation
XVGA Video (1024 X 768)







Emu Italy: Esound
Tel : +39 0733 226271 - Fax: +39 0733 226546 , e-mail





advanced technologic sound magazine
2004 march 2004 issue 123


| Entrance | Homepage | Current issue | Archives | Site Map | Charts | Party Zone | Studios |
A-Z index :
Music Machines - Artists - Producers
Highlights :
Music Machines - Artists - Producers
|
Audio Video Files | Guests | ShopOnLine | Vintage Machines | Links | Xtra | all About Future Style | e-mail |

Site Map
